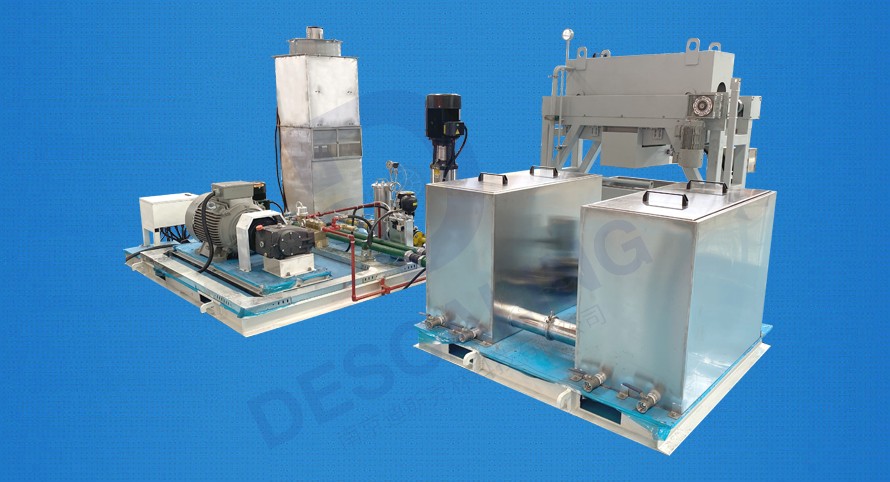

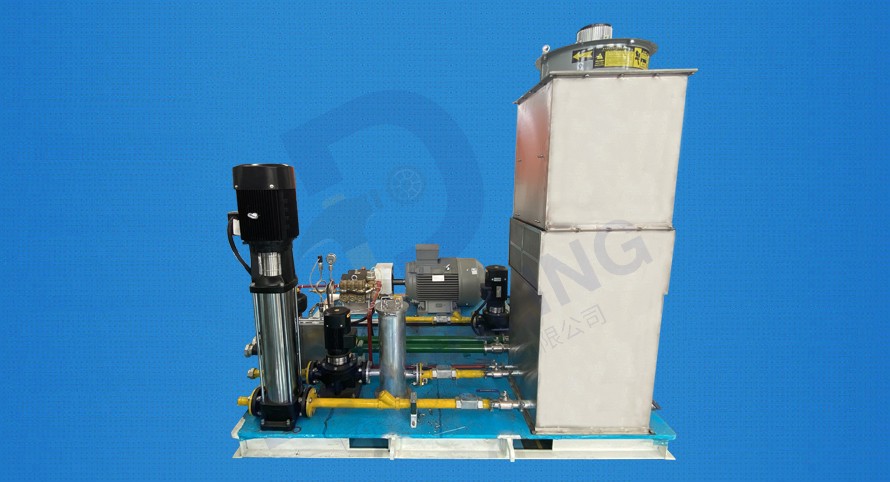

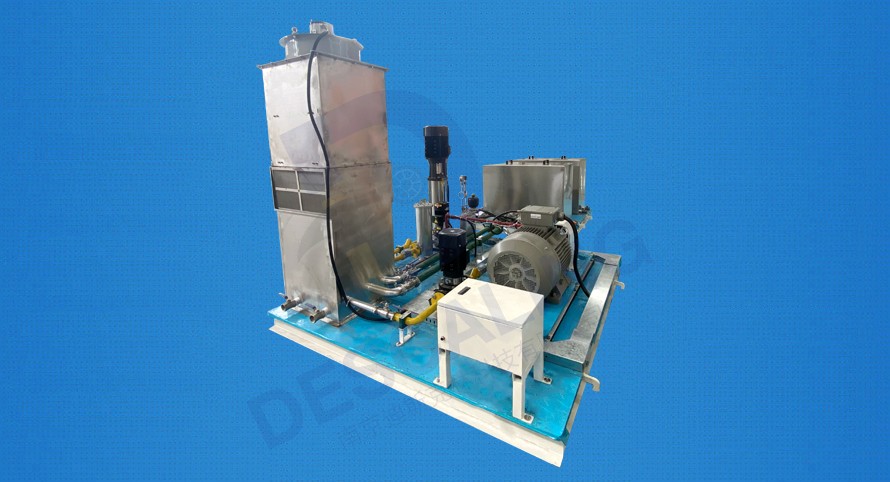

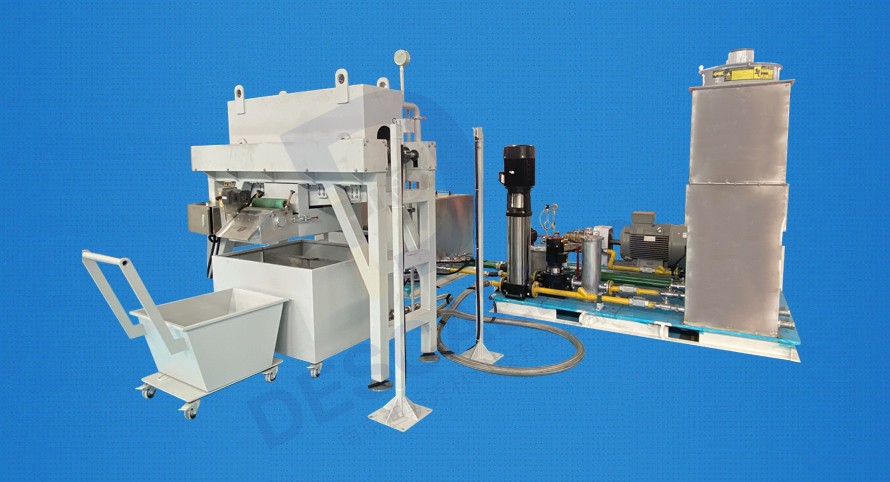

200KG Extrahigh pressure descaling machine

High pressure descaling machine of Descaling Technology is to fill the blank of domestic forging oxide scale removal equipment, from the entry to the mainstream, then to the severe ultra-high pressure oxide scale  removal system, which is the good news of Descaling Technology for domestic forging enterprises.

Based on the principle that the thermal expansion rate of the scale is different from that of the parent metal, the scale on the surface of the billet is cooled rapidly when it is heated out of the furnace, resulting in a large shrinkage a network crack; Under the jet of high-pressure water, a small amount of water enters into the crack vaporizes instantly at high temperature, resulting in gas explosion cracking oxide scale preventing water from contacting with the matrix; After the impact of high-pressure water flow, the scattered oxide scale can be washed out to achieve the purpose of completely removing the oxide scale.






1, The main body of the water tank is made of 304 stainless steel and painted with blue sky

2, The exit and entrance adopt integral welding with high parallelism

3, Front and back built-in baffle, less splash, easy maintenance

4,The nozzle mounting seat is welded with stainless steel, which is easy to maintain

5,Comprehensive treatment of oxide skin, less lower the temperature

6,After removing the oxide scale, the metallographic structure of the product has no chang

7,Equipped with workstation, automatically remove oxide scale, reduce maintenance

8,Equipped with cooling tower, multiple filtration

Name

Model

Workstation size(mm)

Equipment size

Total power of equipment

Brand of high pressure pump

High pressure water pump flow

200KG Extrahigh pressure descaling machine

LTC-200-200

3000*2000*2000

Refer to the model

40KW

ITALY

60L/min

Motor brand

Motor power

Cooling tower brand

Cooling tower power

Electric brand

Brand of multistage magnetic separator

Power of multi-stage magnetic separator

SIEMENS

30KW

LITAI

2KW

Schneider

LITAI

200W

Suitable for bar diameter(mm)

Maximum width after blank making

Number of nozzles

Material

Transmission motor

Inverter brand

Transmission mode

50-200

300

6

304 stainless

Option

SIEMENS

Option




  • Advanced technology and high quality

    Senior R & D team, master mature industry technology, independent R & D design, shape high-end quality from the source

  • Standard manufacturing to make good quality

    High precision advanced equipment, standardized production line, accurate control of equipment quality

  • Own software to ensure quality

    R&D team develops the corresponding software system according to the customer's requirements (testing the size and demand of the product), customization makes more choices

  • Quality control by quality inspection team

    The selection of raw materials, the control of software system development or the quality inspection of products, all are strictly controlled


1.Our personnel are responsible for the installation and debugging of the system to ensure the stable operation of the system and meet the detection requirements of customers

2.When the system is delivered, systematic training shall be given to the users so that they can operate skillfully to judge and solve the basic problems

3.System warranty for one year, lifetime service, enjoy free system upgrade

4.The sales and service personnel will reply to the problems that the customer cannot solve within 2 hours and arrive at the customer within 2 days
